Parameters (wired mode) | |||||

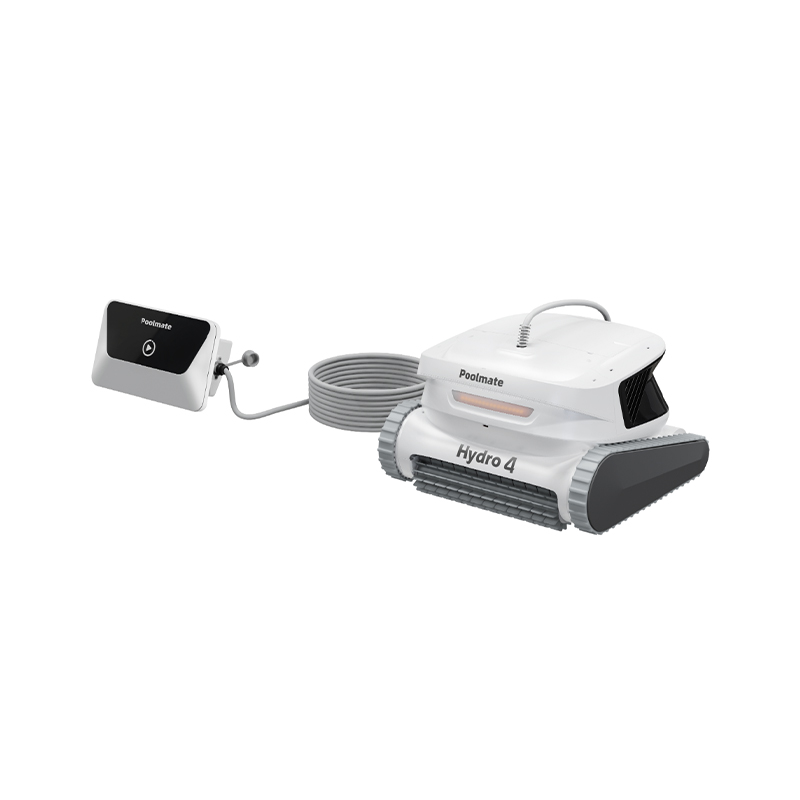

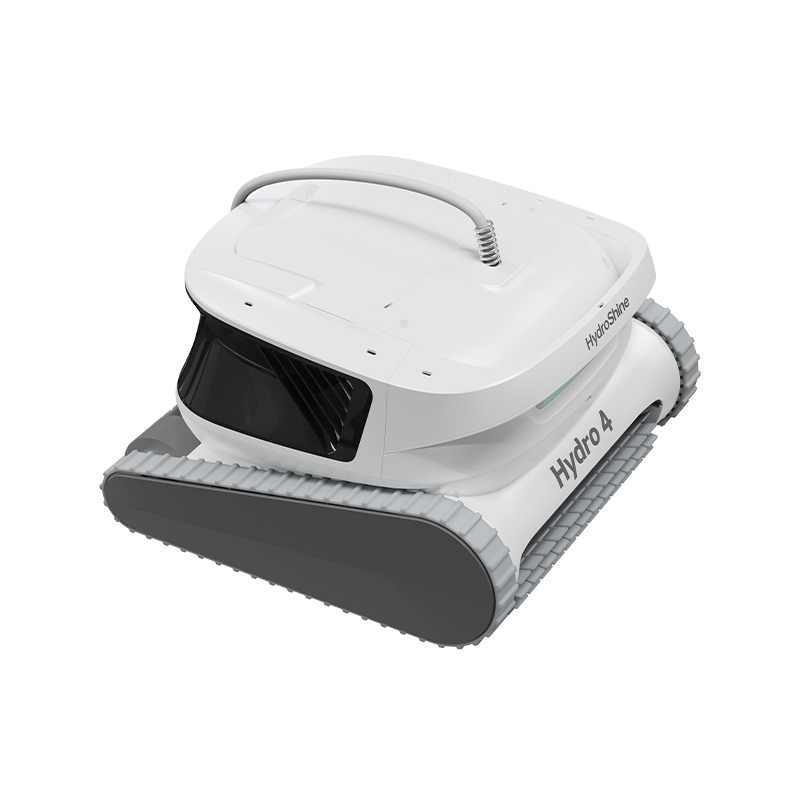

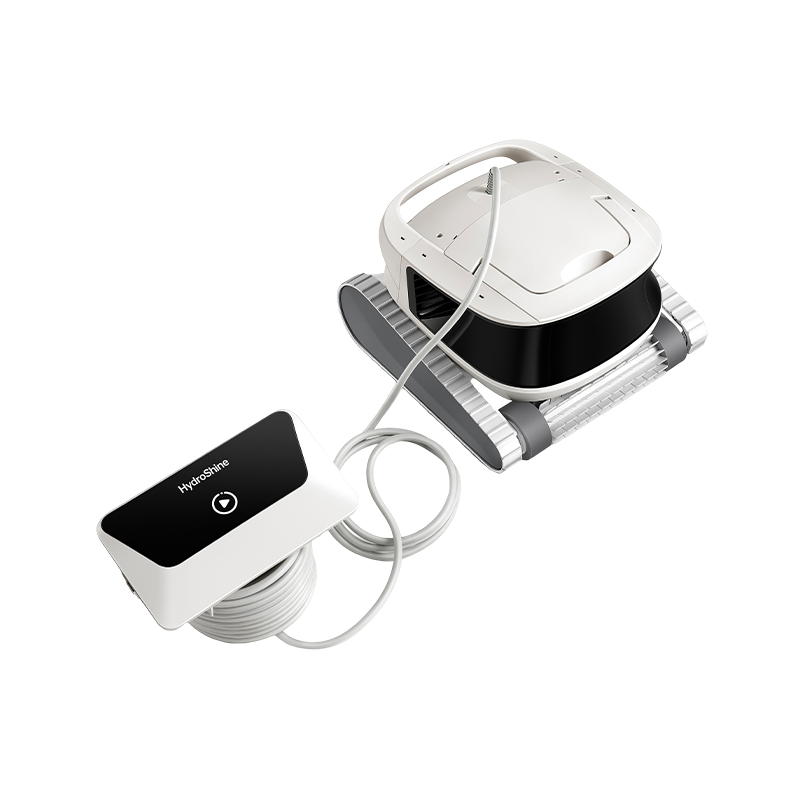

Basic parameters | Main unit dimensions | 398×405×253mm | APP | APP | support |
Main unit weight | 6.5kg(cable not included) | Cloud Services | support | ||

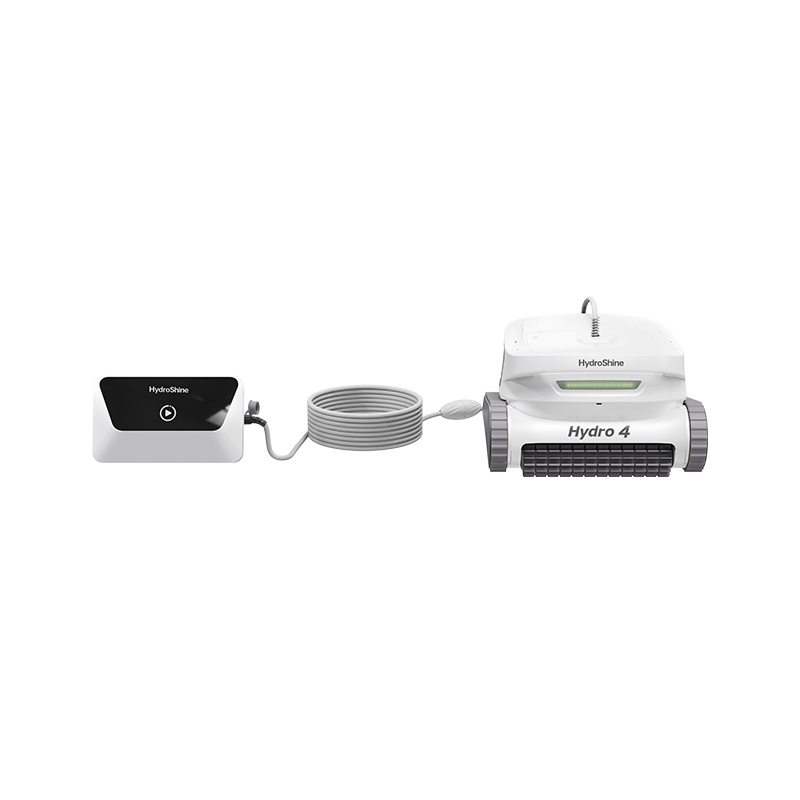

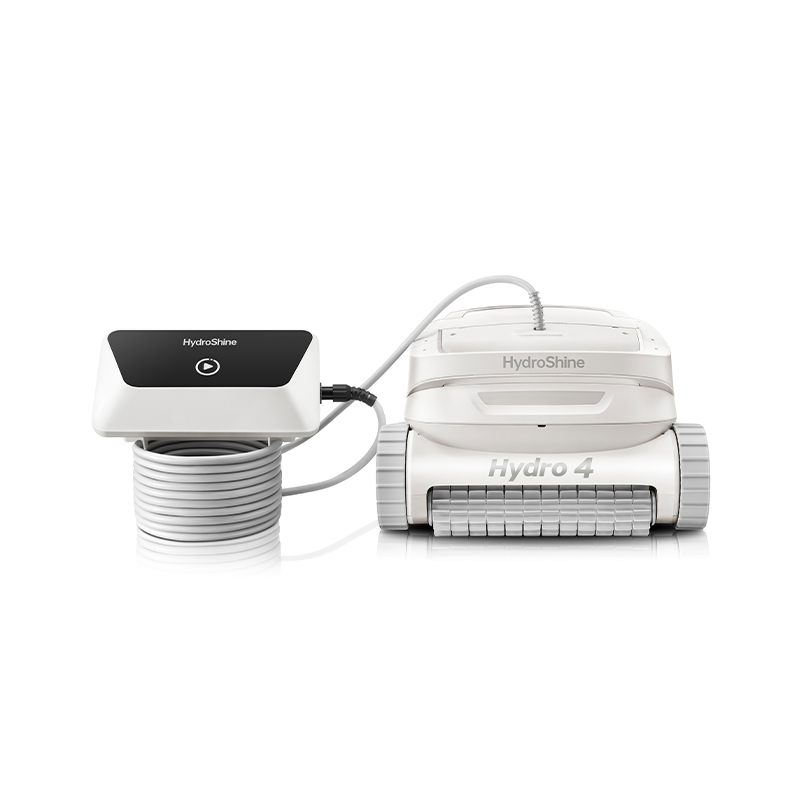

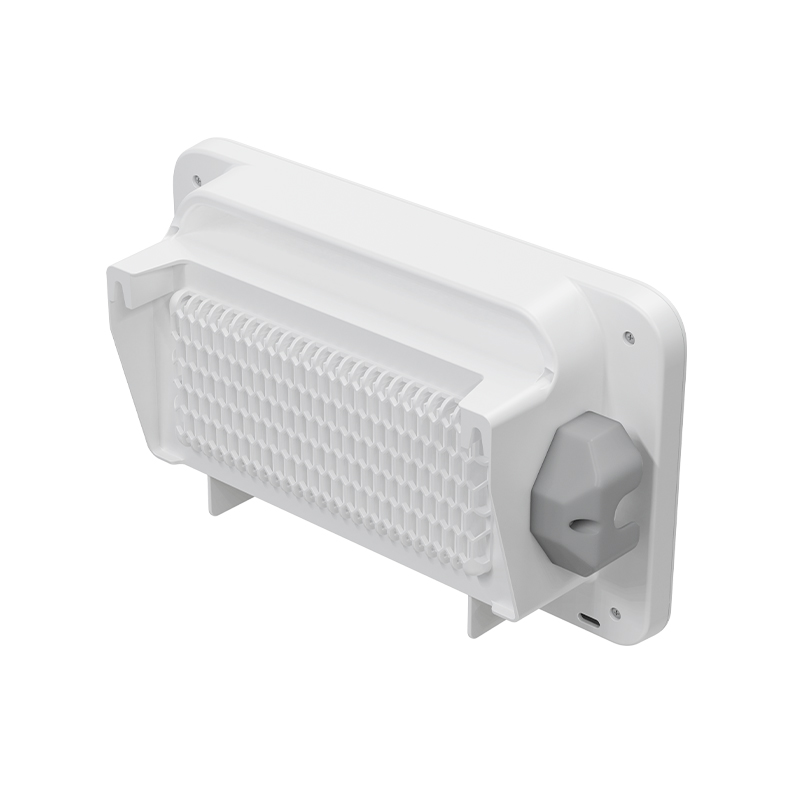

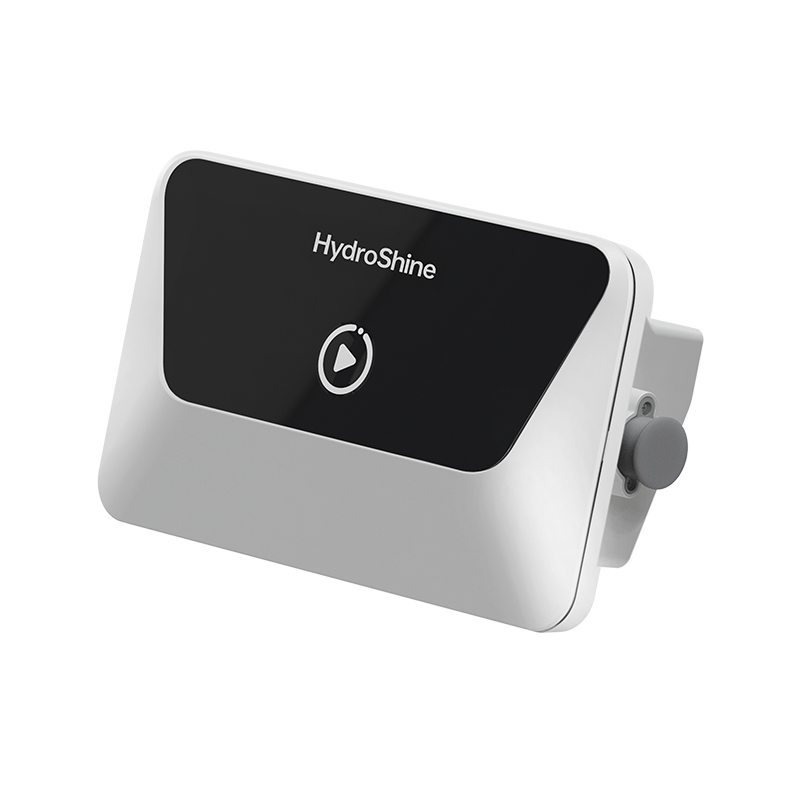

Control box dimensions | 290×170×130mm | Appointment start | support | ||
Control box weight | 1.5kg(cable not included) | Manual mode | support | ||
Robot protection rating | IP68 | Water temperature display | support | ||
Control box protection rating | IP54 | other | Use Depth | 0.5-3m | |
Cable length | 15m | Optimal application area | 100-150m² | ||
Filter basket capacity | 4.1L | Moving speed | 12m/min | ||
Filter basket replacement | Replace the filter basket as a whole | Clean area | Pool bottom, pool wall, waterline | ||
Filtration accuracy | 180μm | Cleaning Mode | Standard 2 hours/Standard 1 hour/Standard 3 hours | ||
50μm Hyper-fine (optional) | |||||
Filtration flow rate | Up to 320L/min | Pool wall only 2h | |||
Number of water pumps | 2 | Only 2 hours at the bottom of the pool | |||
Number of active brushes | 1 | Salt | 5000ppm | ||
Input power | Maximum input power 150W | chlorine | 4ppm | ||
Rated input voltage | AC 100-120V/200-240V, 50-60Hz (Actual voltage available is shown on the product label) | PH | 7.0-7.8 | ||
Operating temperature | 5-35℃ | ||||
Rated output voltage | DC24V | Storage temperature | 5-45℃ | ||
Parameters (battery mode) | |||||
Basic parameters | Mainframe dimensions | 398×405×253mm | APP | APP | support |
Mainframe weight | 6.5kg (excluding cables) | Cloud Service | support | ||

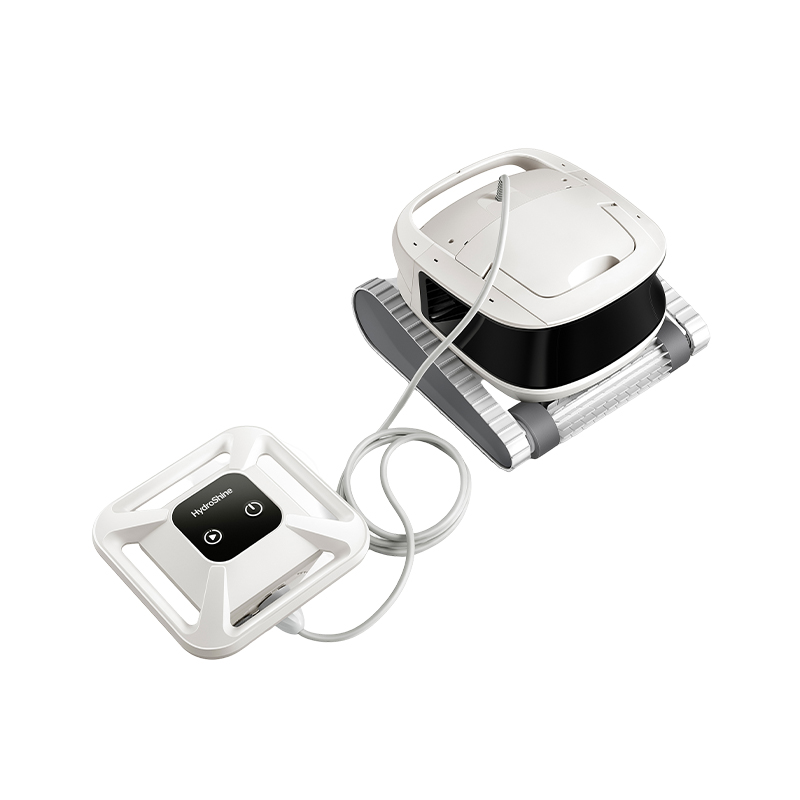

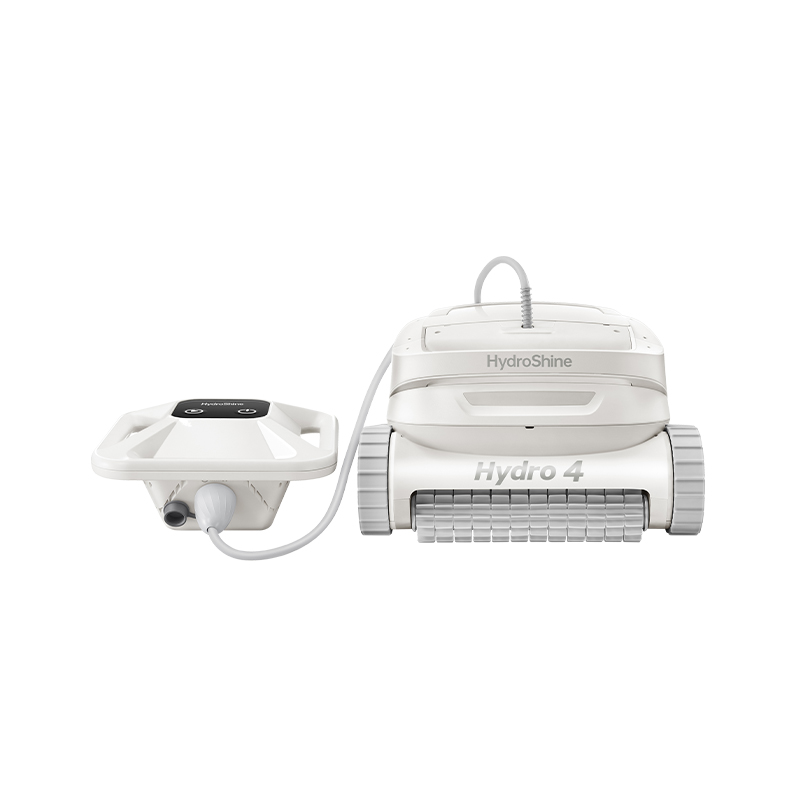

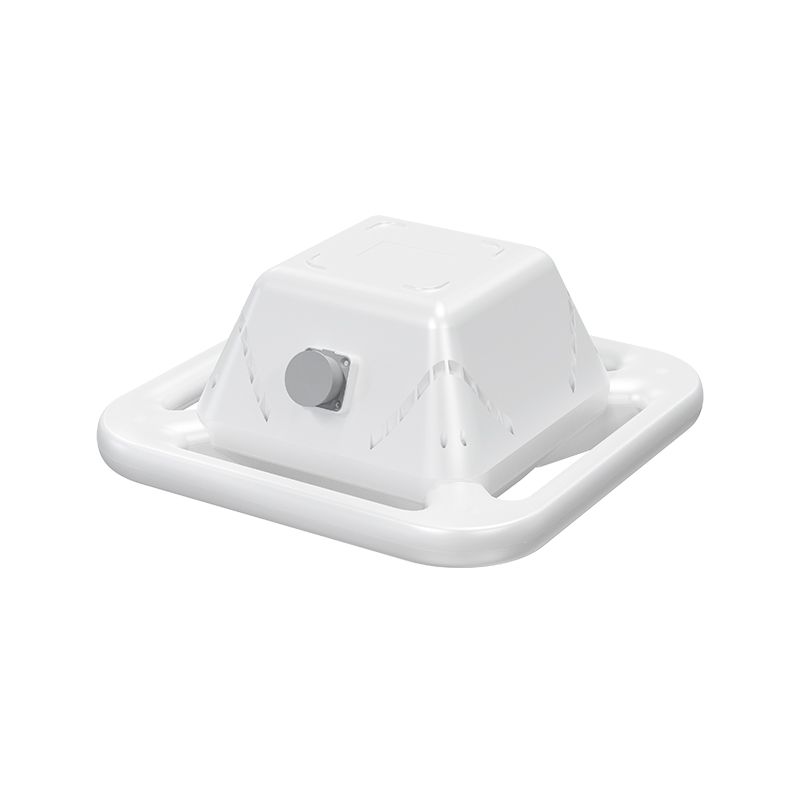

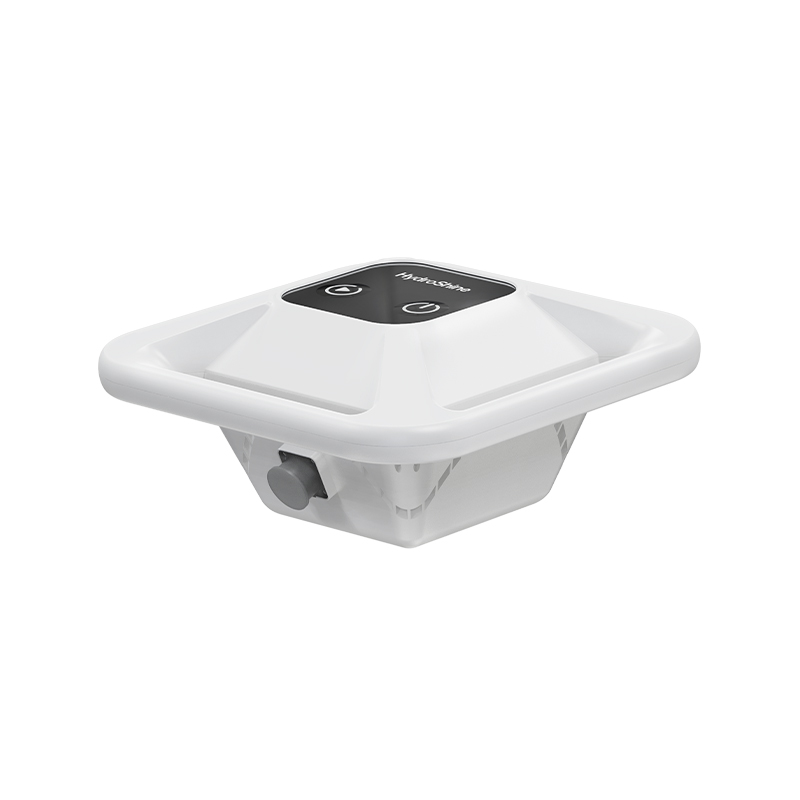

Buoy dimensions | 294×294×145mm | Scheduled Start | support | ||
Buoy weight | 2.5kg | Manual Mode | support | ||
Robot protection rating | P68 | Water temperature display | support | ||
Buoy protection rating | IP54 | other | Use Depth | 0.5-3m | |
Cable length | 3m | Optimal application area | 80-100m² | ||
Moving speed | 12m/min | ||||
Battery capacity | 14400 mAh | Cleaning area | Pool bottom, pool wall, waterline | ||
Battery life | 250min | Cleaning Mode | Standard 2 hours/Standard 1 hour/Standard 3 hours | ||
Filter basket capacity | 4.1L | ||||
Filter basket replacement | Replace the filter basket as a whole | ||||
Filtration accuracy | 180μm | Pool wall only 2h | |||
50μm Hyper-fine (optional) | Only 2 hours at the bottom of the pool | ||||
Filtration flow rate | Up to 320L/min | Salt | 5000ppm | ||
Number of water pumps | 2 | chlorine | 4ppm | ||
Number of active brushes | 1 | PH | 7.0-7.8 | ||
Input power | Maximum input power 150W | Operating temperature | 5-35℃ | ||
Rated input voltage | DC25.2V | Storage temperature | 5-45℃ | ||
Rated output voltage | DC21.6V |
| |||
Charging time | 4h | ||||
